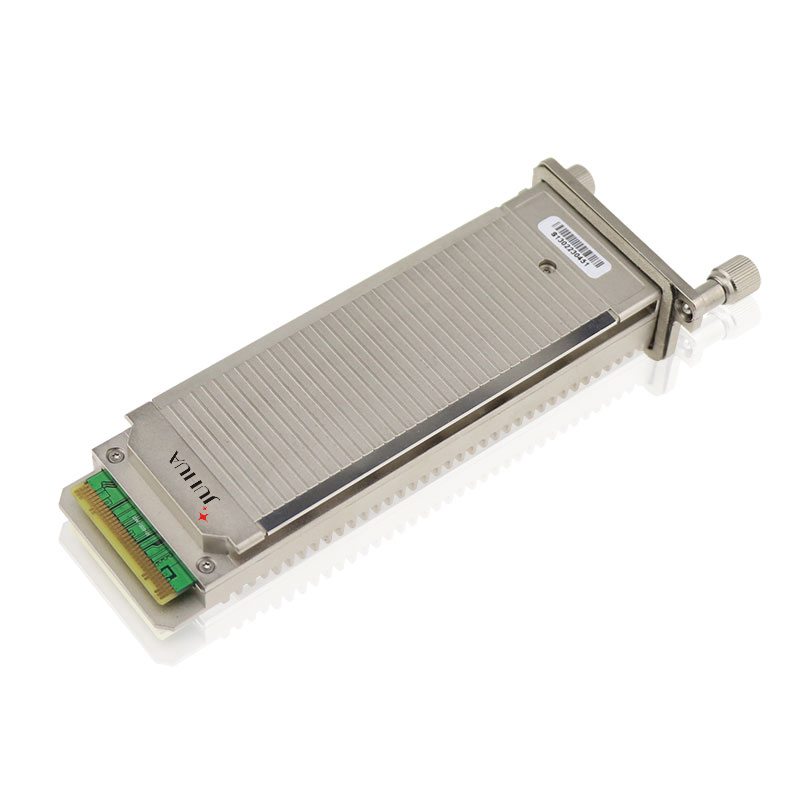

10G XENPAK Transceivers
solutions of telecommunication & data communication network, big data & cloud computing center, HD video transmission and consumer optics.
Features (ER Transponder, 40km Reach)
? XENPAK MSA Compliant
? 70-PIN connector
? SC duplex receptacle package
? Cooled EA-DFB/PIN-PD
? Power supply: +5.0 V, +3.3 V, APS:+1.2 V
? Power Dissipation 3.5W Maximum
? 0oC to 70oC Operating Case Temperature
? Digital Diagnostic Monitoring
? Management and control with MDIO 2-wire bus
? XAUI electrical interface 4 x 3.125 Gb/s Ethernet
? ≤40km ER(Extended Range)10GBE
? RoHS6 compliant and lead free
Application
? 10Gb/s Ethernet transmission system
Ordering information
Datasheet Download | Data Rate | Distance | LD | PD | DDMI |
GXK-31192-LRMC | 10Gbps | 220m | 1310nm DFB | PIN | Y |
GXK-85192-SRC | 10Gbps | 300m | 850nm VSCEL | PIN | Y |
GXK-31192-LRC | 10Gbps | 10km | 1310nm DFB | PIN | Y |
GXK-55192-ERC | 10Gbps | 40km | Cooled EA-DFB | PIN | Y |
GXK-55192-ZRC | 10Gbps | 80km | Cooled EA-DFB | APD | Y |
